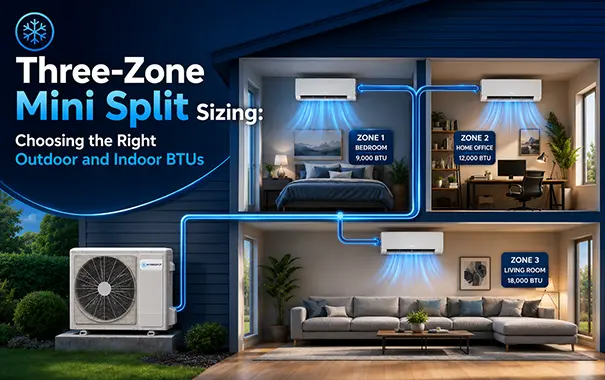

A three-zone mini split can heat and cool three rooms from one outdoor condenser, but choosing the equipment involves more than adding the rooms’ square footage together. Each indoor head serves a separate space with its own cooling and heating load. The outdoor unit must then support the exact indoor combination and provide enough usable capacity when the zones operate together.
That means correct three-zone mini split sizing happens in two stages:
- Size each indoor head for the room it serves.
- Select an outdoor condenser approved for those three indoor units and the home’s expected simultaneous demand.
Choosing the condenser first and dividing its BTUs three ways can leave one room oversized, another undersized, and the entire system poorly matched. This guide explains a more reliable way to size a tri-zone system.
Quick Answer
To size a three-zone mini split correctly, calculate the load of all three rooms separately. Choose an indoor unit for each calculated room load, add the nominal indoor capacities, and then check the manufacturer’s combination table for an outdoor unit that supports those exact indoor models.
Do not assume that three rooms need three equal heads. For example:
- Three similar small rooms may use 9,000 + 9,000 + 9,000 BTU indoor units.
- Two small rooms and one medium room may use 9,000 + 9,000 + 12,000 BTUs.
- Two small rooms and one larger open space may use 9,000 + 9,000 + 18,000 BTUs.
- Three similar medium rooms may use 12,000 + 12,000 + 12,000 BTUs.
These are possible configurations, not universal recommendations. The final selection must be approved for the exact equipment and verified against the property’s load calculation.
You can review currently available combinations in the 3-zone mini split collection.
What Is a Three-Zone Mini Split?
A three-zone, triple-zone, or tri-zone mini split connects three indoor air handlers to one outdoor condenser. Each indoor unit normally has its own thermostat or controller, allowing the occupants to set different temperatures in different rooms.
The three indoor heads can be the same size or different sizes. Depending on the product family, a system may also support different indoor-unit styles, such as wall-mounted, ceiling cassette, concealed ducted, or floor-ceiling units.
However, being made by the same brand does not automatically make every component compatible. The indoor model numbers, outdoor model number, refrigerant, communication system, connected-capacity range, and approved combination all need to match.
If you only need to serve two rooms, start with our two-zone mini split sizing guide. Adding a third zone changes the connected load, simultaneous-demand calculation, line-set planning, and minimum-load behavior.
Step 1: Calculate the Load of Each Room Separately
Create three separate room calculations before choosing any equipment:
- Zone 1 load
- Zone 2 load
- Zone 3 load
Square footage can provide an early estimate, but it cannot capture all the factors that affect a room’s actual load. Each calculation should consider:
- Ceiling height
- Window area, glass type, and orientation
- Direct morning or afternoon sunlight
- Wall, floor, and ceiling insulation
- Air leakage
- Roof exposure or a room located above a garage
- Number of occupants
- Computers, televisions, and other electronics
- Cooking appliances or other internal heat sources
- Door position and normal room use
- Local outdoor temperature and humidity
Three equally sized rooms can still need different indoor units. For example, a shaded bedroom, a west-facing home office, and a kitchen-connected living area may have very different peak loads even if their floor areas are similar.
Use the MyMiniSplit sizing calculator for an initial estimate. Before purchasing, have a qualified HVAC professional complete or verify a room-by-room load calculation.
Step 2: Choose the Indoor BTUs for Each Zone
Once each room’s heating and cooling load is known, choose the appropriate indoor-unit capacity supported by the product family.
The following ranges are useful for preliminary planning, but they are not a substitute for a professional load calculation:
| Room size | Common starting capacity | What can change the result |
| Up to about 300 sq. ft. | 9,000 BTU | Very small or highly efficient rooms may have a much lower actual load |
| About 300–500 sq. ft. | 12,000 BTU | Sun, windows, occupancy, and electronics can move the load up or down |
| About 500–750 sq. ft. | 18,000 BTU | Airflow, room shape, and outdoor-unit compatibility become especially important |
| About 750–1,000 sq. ft. | 24,000 BTU | Large or open rooms require careful load and air-distribution planning |
Once the loads are estimated, you can compare available 9,000 BTU multi-zone units, 12,000 BTU multi-zone units, and 18,000 BTU multi-zone units. Check the exact model compatibility before combining any components.
For more background, see How to Size a Ductless Mini Split Air Conditioner and our guide to choosing the right mini split size for a room.
Three equal indoor heads
Equal indoor heads make sense only when the three rooms have similar calculated loads. Three comparable bedrooms might fit a 9,000 + 9,000 + 9,000 arrangement, while three similar medium rooms could require 12,000 + 12,000 + 12,000 BTUs.
Do not select equal heads simply because they make the arithmetic easy. The room loads should justify the decision.
Three unequal indoor heads
Unequal heads are often more appropriate when the rooms have different sizes or uses. A small bedroom, a second small bedroom, and a larger living area might call for 9,000 + 9,000 + 18,000 BTUs.
Similarly, two small bedrooms and a moderately larger office may fit a combination such as 9,000 + 9,000 + 12,000 BTUs. The exact pairing must appear in the manufacturer’s approved data for the selected condenser.
Step 3: Add the Indoor Capacities—but Do Not Stop There
Adding the three indoor BTU ratings gives you the connected nominal capacity. For example:
- 9,000 + 9,000 + 9,000 = 27,000 BTUs of connected indoor capacity
- 9,000 + 9,000 + 12,000 = 30,000 BTUs
- 9,000 + 9,000 + 18,000 = 36,000 BTUs
- 12,000 + 12,000 + 12,000 = 36,000 BTUs
This total is useful, but it does not automatically determine the outdoor-unit size.
Some manufacturers permit the connected indoor capacity to exceed the outdoor unit’s nominal rating. For instance, MyMiniSplit offers a 24,000 BTU three-zone package with three 9,000 BTU indoor units. The indoor nameplate capacities total 27,000 BTUs, but the package uses a 24,000 BTU outdoor unit as an approved combination.
That does not mean any 27,000 BTU indoor grouping can be connected to any 24,000 BTU condenser. It means that this specific combination has been selected and approved within that product family. Apply the same model-specific rule to every three-zone system.
Step 4: Choose the Outdoor Condenser
After selecting the three indoor heads, review the engineering data for the outdoor unit. Confirm all of the following:
- The condenser has three usable indoor circuits or ports.
- All three indoor model numbers are compatible.
- The exact indoor BTU combination is approved.
- The total connected capacity is within the permitted minimum and maximum range.
- Cooling and heating output are adequate at local design temperatures.
- The unit can handle the expected simultaneous load.
- Performance is acceptable when only the smallest zone operates.
- Total and per-circuit line lengths are within the allowed limits.
- Elevation differences remain within manufacturer limits.
- The exact combination has the expected SEER2, EER2, HSPF2, and AHRI data.
- Electrical service, breaker size, and installation requirements are suitable.
Do not choose the condenser solely because its model name is close to the indoor BTU total. The approved combination chart and capacity tables are more important than simple nameplate arithmetic.
Browse the multi-zone mini split collection after determining the three room loads and preferred indoor-unit sizes.
Connected Capacity vs. Available Outdoor Capacity
In a multi-zone system, each indoor unit requests capacity according to its zone’s conditions. The outdoor inverter responds to the combined demand, but it cannot provide unlimited output.
If the three indoor heads request more cooling or heating than the condenser can deliver at that moment, the outdoor unit distributes its available capacity across the active zones. As a result, an indoor head may not receive its full nominal output when all three rooms are calling heavily.
This is why an approved connected-capacity ratio is not the same as a guarantee of full simultaneous output from every head. A slightly smaller outdoor rating may perform well when the rooms peak at different times, but it can be a poor match when all three zones regularly reach peak load together.
Never borrow an allowable connected-capacity percentage from another manufacturer or product series. Check the exact system documentation.
How Simultaneous Demand Changes the Decision
Consider not only how large each room’s peak load is, but also when that peak occurs.
Loads that may peak at different times
A living room may have its highest load during the afternoon, while bedrooms may require more conditioning at night. In this situation, the condenser may rarely face the sum of all three individual peak loads at once.
Loads that may peak together
Three west-facing rooms, three occupied offices, or rooms directly below a hot roof may all call for strong cooling during the same afternoon period. The condenser needs enough available capacity for this realistic concurrent demand.
This distinction is particularly important in Miami. Long cooling seasons, strong solar gain, and high humidity can keep several zones active simultaneously. Do not depend on assumed diversity without considering the property’s actual room orientation, occupancy schedule, and moisture load.
Common Three-Zone Configurations
9,000 + 9,000 + 9,000 BTUs
This may suit three smaller rooms with similar loads. MyMiniSplit currently lists a 24,000 BTU system with three 9,000 BTU wall-mounted indoor units.
12,000 + 9,000 + 9,000 BTUs
This arrangement may work for one medium-load room and two smaller rooms. See the listed 30,000 BTU three-zone package with 12,000 + 9,000 + 9,000 BTU indoor units.
12,000 + 12,000 + 12,000 BTUs
Three similar medium-load rooms may fit equal 12,000 BTU heads. MyMiniSplit offers a 36,000 BTU three-zone system with three 12,000 BTU indoor units.
9,000 + 9,000 + 18,000 BTUs
This combination may suit two smaller rooms and one substantially larger area. Review the 36,000 BTU three-zone system with 9,000 + 9,000 + 18,000 BTU indoor units as an example.
These product combinations should be treated as shopping examples, not replacements for a load calculation. Verify the current specifications, indoor and outdoor model numbers, and installation requirements before ordering.
Do Not Ignore Minimum Output
Peak capacity is only half of the outdoor-unit decision. A three-zone condenser must also operate acceptably when one small room is the only zone calling.
Suppose the system is sized for a large total load, but only one small bedroom needs cooling overnight. If the outdoor unit cannot reduce its output enough for that condition, the system may cycle more frequently or provide less stable temperature and humidity control.
Review the condenser’s minimum capacity, the indoor unit’s operating range, and one-zone performance. Inverter technology provides modulation, but every model has limits.
Indoor-Unit Type and Placement Matter
Correct BTUs cannot overcome poor air distribution. For each zone, choose an indoor-unit style and position that can serve the occupied area without obstruction.
Check for:
- A clear supply-air path
- Proper return-air clearance
- Access for filter cleaning and service
- A practical condensate-drain route
- A line-set route within the allowed length
- A location that does not blow directly onto a bed, desk, or sofa
- A sensor position that represents typical room conditions
Mixing wall-mounted, cassette, concealed ducted, or floor-ceiling units may be possible in some product families, but only use combinations expressly supported by the manufacturer.
Why Oversizing the Indoor Heads Is a Problem
Choosing larger heads “just in case” can create drafts, short bursts of cooling, temperature swings, weaker moisture removal, and unnecessary upfront cost. An oversized head may also spend more time near the lower end of its operating range.
In Miami’s humid climate, steady operation is valuable because the system needs enough coil time to remove moisture. More nominal BTUs do not automatically produce better comfort.
Why Undersizing the Outdoor Unit Is a Problem
An outdoor unit that is too small for the realistic simultaneous load may struggle when all three rooms need capacity. Some or all zones may take longer to reach their set temperatures, and comfort may become uneven during peak weather.
An approved equipment combination can still be unsuitable for a particular home if the design assumes load diversity that the home’s three rooms do not have. Equipment compatibility and building-load suitability are separate checks; both must pass.
Common Three-Zone Sizing Mistakes
Dividing the outdoor BTUs into three equal shares
A 36,000 BTU outdoor unit does not automatically mean each room needs a 12,000 BTU head. Each room determines its own indoor capacity.
Combining all square footage before sizing the heads
A whole-area estimate hides differences in sunlight, windows, insulation, occupancy, and room use.
Adding head ratings and buying the nearest condenser
The total indoor BTUs must fall within an approved model combination. Arithmetic alone cannot establish compatibility.
Ignoring when the rooms peak
Three individually correct heads can still overwhelm an undersized condenser if the rooms regularly reach peak demand together.
Assuming every head receives full capacity simultaneously
The indoor units share the outdoor unit’s available output. Nominal head ratings do not guarantee that all three receive their full ratings at the same moment.
Ignoring low-load operation
The system must perform well when just one small room calls, not only when all three zones are active.
Mixing unapproved indoor units
Brand name and BTU rating are not enough. Exact models, controls, refrigerant, and combination approval matter.
Forgetting line-set limitations
Three separate circuits can create substantial combined line length. Check per-zone length, total length, elevation, additional refrigerant requirements, and accessibility before purchase.
Three-Zone Mini Split Sizing Checklist
Before ordering a system, verify that:
- All three rooms have separate heating and cooling load calculations.
- Each indoor head matches the room it serves.
- The indoor-unit types provide suitable airflow and placement.
- The three exact indoor models are compatible with the condenser.
- The combination appears in the manufacturer’s approved data.
- Connected capacity is within the permitted range.
- The condenser can meet expected simultaneous demand.
- Minimum-output and single-zone performance are acceptable.
- Cooling and heating capacity have been checked at design conditions.
- Line lengths, elevation, drainage, electrical service, and breaker requirements are acceptable.
- The final selection has been reviewed by a qualified HVAC professional.
If you are still deciding between one shared condenser and separate systems, read Single-Zone vs Multi-Zone Mini Split: Which Costs Less Over Time?.
The Bottom Line
Correct three-zone mini split sizing begins with three separate room loads. Select the indoor head for each room first, and then choose an outdoor condenser that supports the exact combination and the home’s realistic simultaneous demand.
Three similar rooms may use equal indoor heads, while different bedrooms, offices, and living spaces often need unequal BTU ratings. The connected indoor total may sometimes exceed the outdoor unit’s nominal rating, but only when the manufacturer approves that exact pairing and the available outdoor capacity suits the property.
Once the room loads are known, compare three-zone mini split systems and have the final equipment selection verified before installation.
Frequently Asked Questions
How do I calculate the BTUs for a three-zone mini split?
Calculate the heating and cooling load of each room separately, choose an appropriate indoor head for each load, and then verify that the three-unit combination is approved for an outdoor condenser with adequate simultaneous capacity.
Do all three indoor heads need to have the same BTU rating?
No. Equal heads make sense only when the three rooms have similar calculated loads. Different room sizes, windows, sunlight, occupancy, or uses may require unequal capacities such as 9,000 + 9,000 + 18,000 BTUs.
Can three 9,000 BTU heads connect to a 24,000 BTU outdoor unit?
Only when the manufacturer approves the exact 9,000 + 9,000 + 9,000 indoor combination for that specific outdoor model. Do not assume that the same connected-capacity arrangement is permitted across other brands or product families.
Does the outdoor BTU rating need to equal the total indoor BTUs?
Not always. Some approved multi-zone systems allow connected indoor capacity above the outdoor unit’s nominal rating. The outdoor unit still has a limited available output, which may be shared when all three zones demand high capacity simultaneously.
Can all three zones run at the same time?
Yes. All three indoor units can normally operate together, but they share the condenser’s available capacity. If their combined demand exceeds the outdoor unit’s output under current conditions, capacity will be distributed among the active zones.
Is a 36,000 BTU mini split enough for three rooms?
It may be, but the answer depends on the separate room loads, approved indoor combination, outdoor performance, and simultaneous demand. A 36,000 BTU model name alone cannot confirm that the system is suitable.
Is square footage enough to size a tri-zone mini split?
No. Square footage is only a starting point. Windows, sunlight, insulation, ceiling height, air leakage, occupancy, electronics, room use, climate, and the timing of each zone’s peak load also matter.
