Summary
- Ultra Low Ambient Hyperformance™ Ductless Mini Split Hyper Heat Pump System
- Cooling capacity: 9,000 BTU/H (0.75 Ton) with 25.5 SEER2 / 14.5 EER2 efficiency
- Heating capacity: 10,000 BTU/H (0.83 Ton) with 10.5 HSPF2 / 4.07 COP efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Hyper Heat Unit (Continues heating in -22°F weather)
- Wireless Internet Access Included (Via Free Smartphone App)

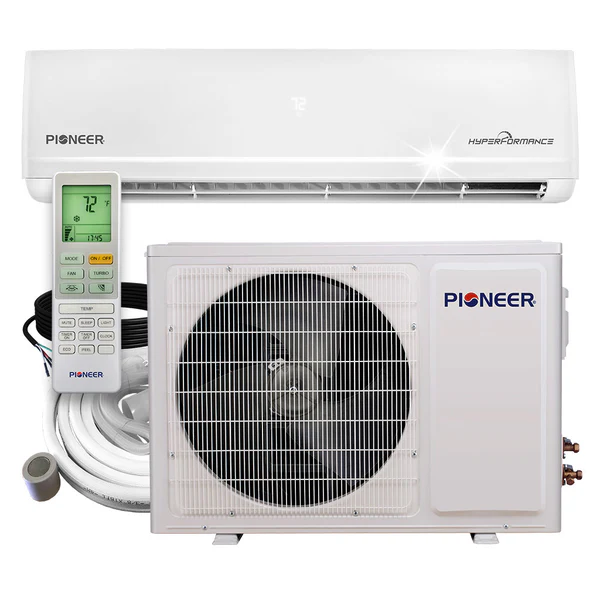

What’s Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control (with wall holder and batteries)
- Internet Control Module

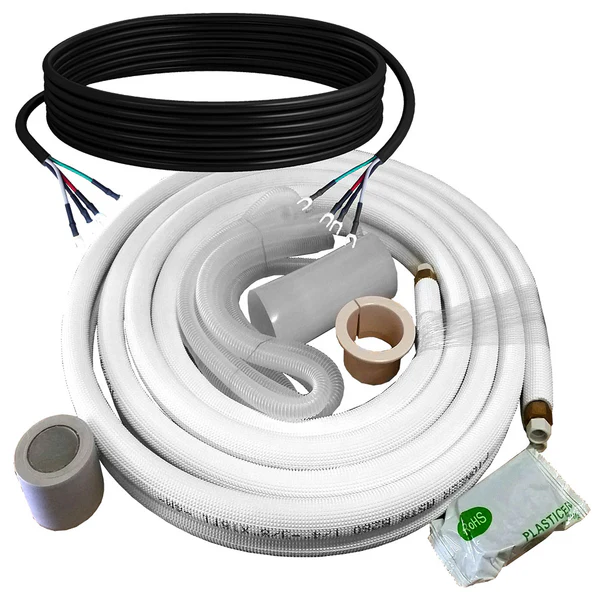

- Copper Lines*
- Signal Cable Between Units*
- Drain for Indoor/Outdoor*
- Wall Passage Sleeve*
- Putty for Wall Hole*
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Our Guarantee
- 5 years Warranty for Parts (Extendable to up to 7 years)
- 5 years for Compressor (Extendable to up to 10 years)
Technical Information
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity (BTU/hr): 9,000 (3,000 ~ 12,000)
- Rated Power Input (Cooling): 620W
- Rated Current (Cooling): 2.8A
- Cooling SEER2: 25.5 BTU/W.h
- Cooling EER2: 14.5 BTU/W.h
- Heating Rated Capacity (BTU/hr): 10,000 (3,000 ~ 14,000)
- Rated Power Input (Heating): 720W
- Rated Current (Heating): 3.2A
- Heating HSPF2 (Region IV/V): 12 / 10.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 4.07 / 2.2 W/W
- Refrigerant Type: R410A
- Recommended Application Area: 100~400 Sq.Ft

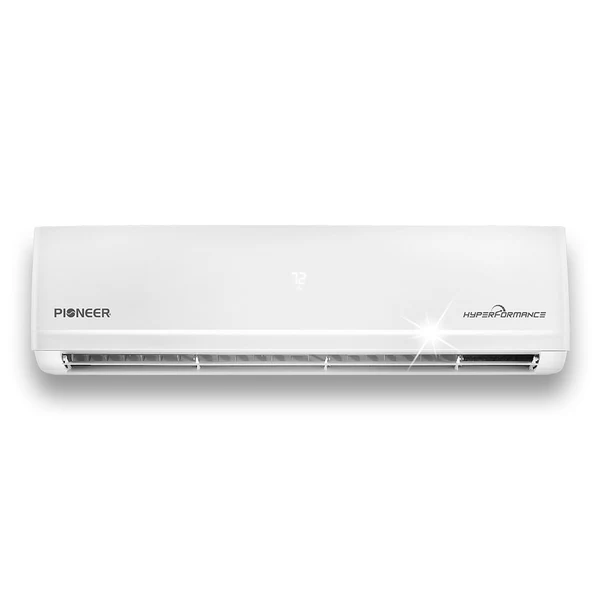

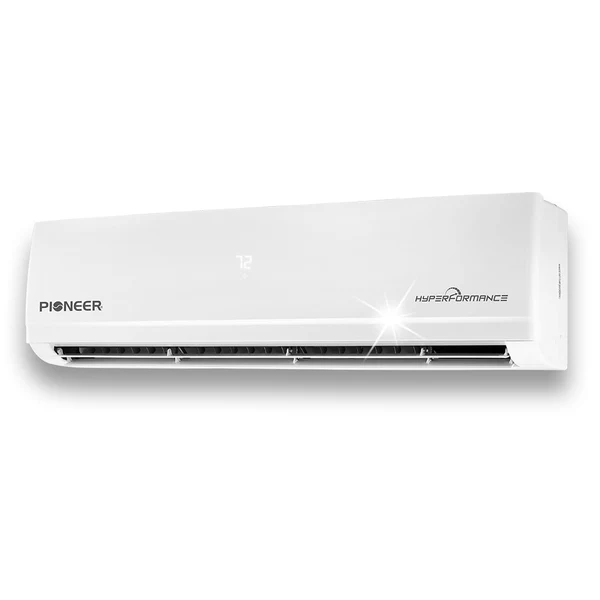

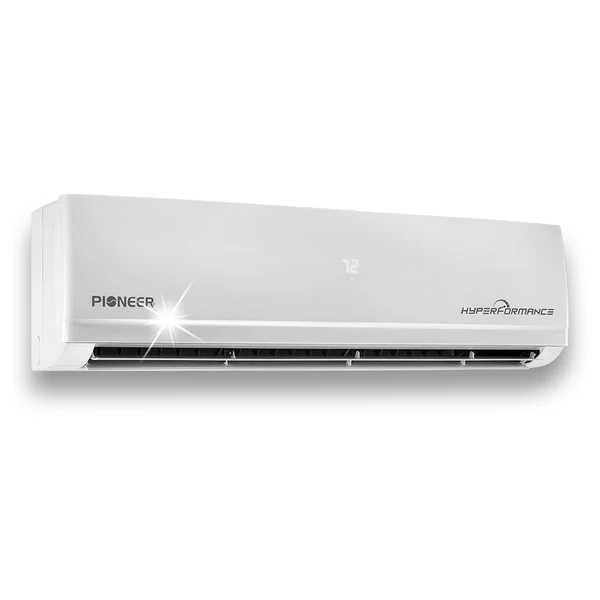

Indoor Unit Data
- Part Number: WF009GHFI25HLH
- Air Flow (Hi/Med/Lo): 365 / 306 / 253 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 42/39/35/32/29 dB(A)
- Net Dimensions (WDH): 33-1/2 x 8-1/8 x 10-5/8 Inches
- Carton Dimensions (WDH): 35-1/2 x 10-1/4 x 13-1/8 Inches
- Net / Gross Weight: 18.7 / 23.1 Lbs

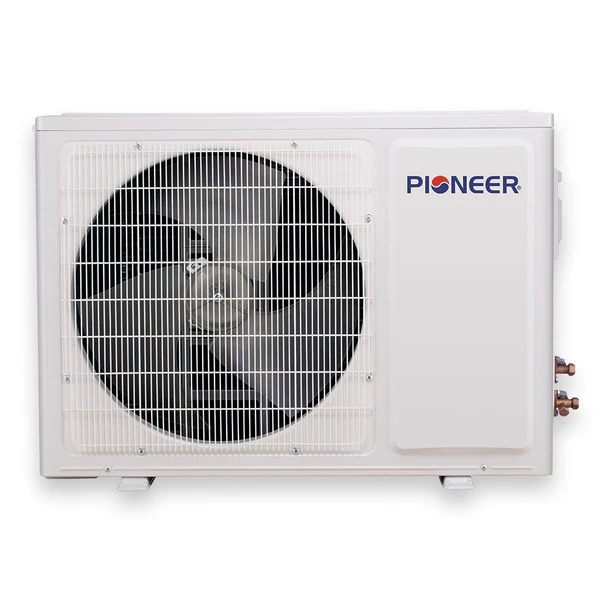

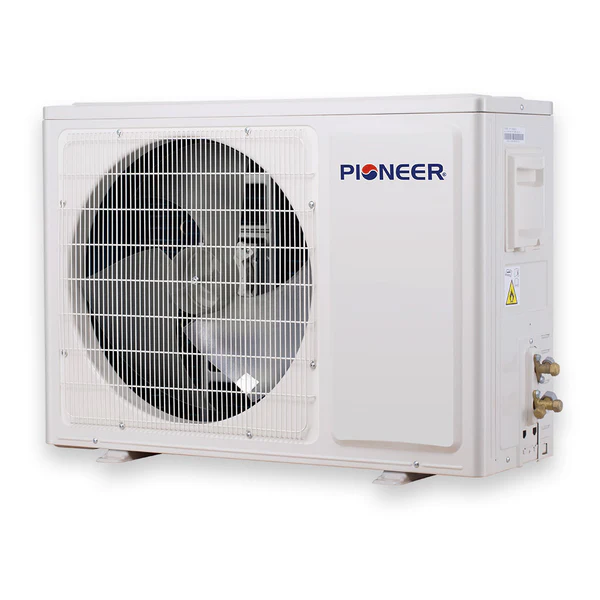

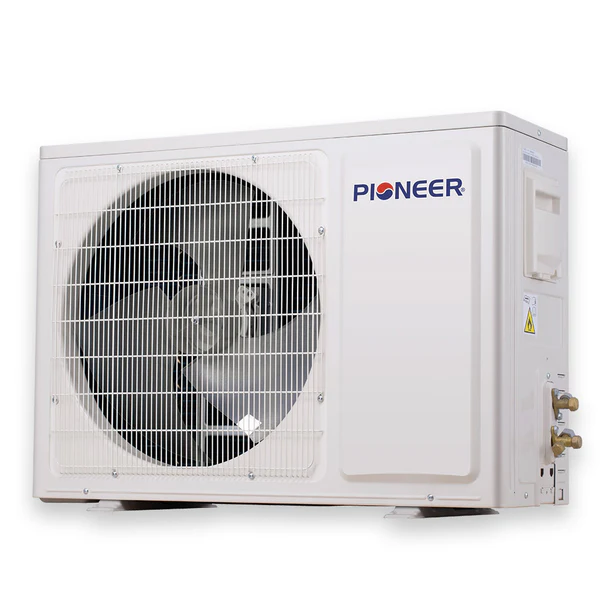

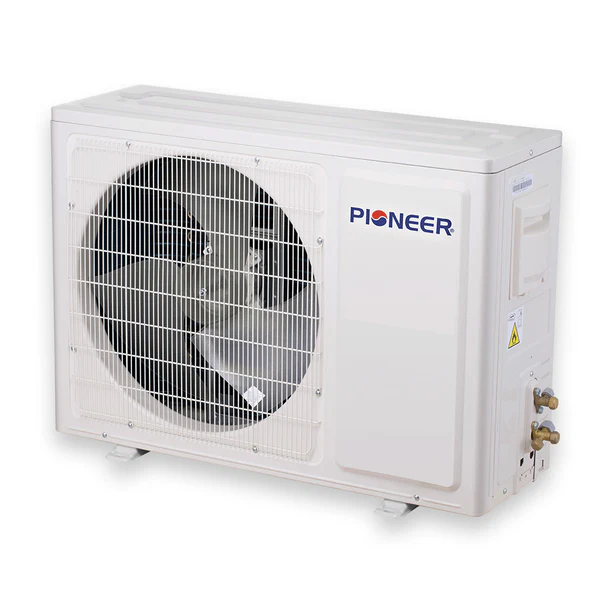

Outdoor Unit Data
- Part Number: YN009GHFI25RPH
- Sound Level: 53 dB(A)
- Net Dimensions (WDH): 31-7/8 x 11 x 23 Inches
- Carton Dimensions (WDH): 37 x 15-1/8 x 25-1/4 Inches
- Net / Gross Weight: 72.6 / 79.2 lbs
- Electrical Circuit Size: 15A (double-pole)
