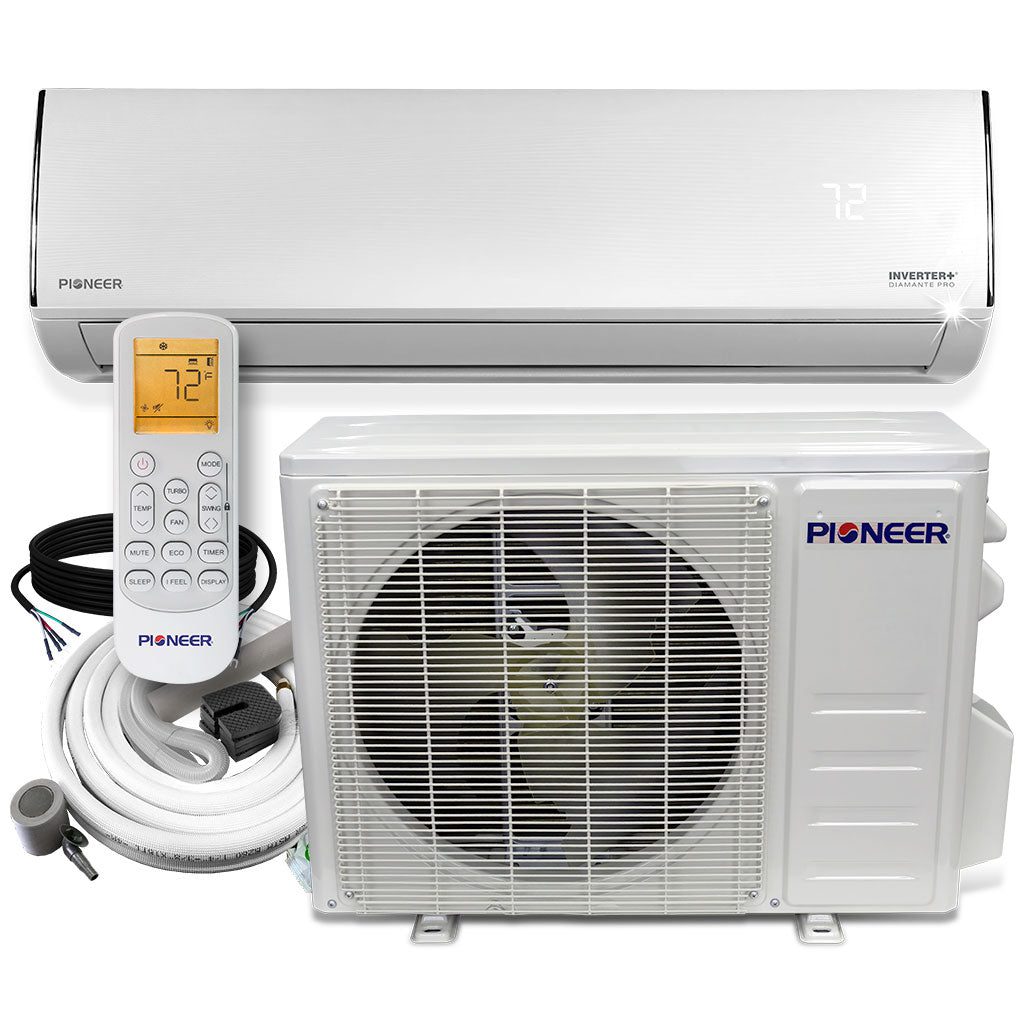

Pioneer® Diamante Pro Series 36,000 BTU 19 SEER2 Ductless Mini Split Air Conditioner Inverter Heat Pump 230V with 16 Ft. Full Kit Set

Name: 36,000 BTU Pioneer Mini Split Heat Pump Air Conditioner
SKU: WYT036GLFI19RL
Price: 2188.00 USD
Availability: InStock

Original price was: $2,399.00.Current price is: $2,188.00.

+ Free Shipping

The Pioneer Diamante Pro Series Ductless Mini Split Heat Pump System, Model WYT036GLFI19RL, offers exceptional climate control with 36,000 BTU power and a SEER2 rating of 19 for energy efficiency. Operating at 230V, this system includes a 16 Ft. installation kit for a straightforward setup. The R410A Pre-Charged Outdoor Unit accommodates refrigerant lines up to 25 ft., ensuring flexibility in installation. With copper tubing and communication wiring in separate packages, this system provides reliable heating and cooling for residential or light commercial spaces. Arriving in two cartons, it guarantees year-round comfort with minimal energy use.

SKU: WYT036GLFI19RL Categories: Ductless 36,000 BTU Mini Split Heat Pump Air Conditioner, Single Zone Mini Split Air Conditioners Tags: 19 SEER, 230v, 36000 BTU, Diamante Pro, heat pump, mini split, Pioneer, wifi ready Brand: Pioneer

Summary

- High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
- Cooling capacity: 36,000 BTU/H with 19 SEER2 / 9 EER2 efficiency
- Heating capacity: 36,000 BTU/H with 8.5 HSPF2 / 3.01 COP2 efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Low Ambient Unit (-13°F)
- AHRI Estimated Annual Operating Costs:
- Cooling: $280.00
- Heating: $895.00

Features

Dual Swing
Dual Drainage
Low Noise
High Efficiency

What’s Included

Indoor Unit
Outdoor Unit

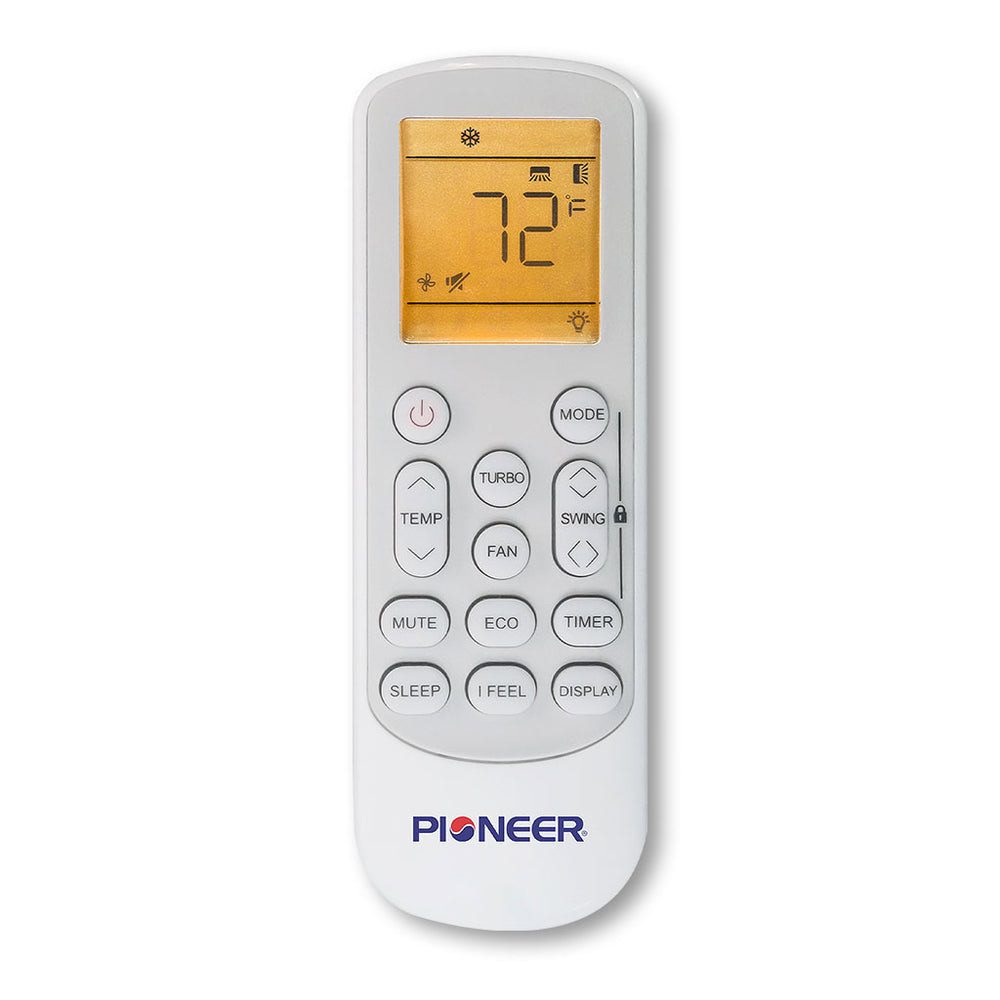

Wireless Remote Control (with wall holder and batteries)

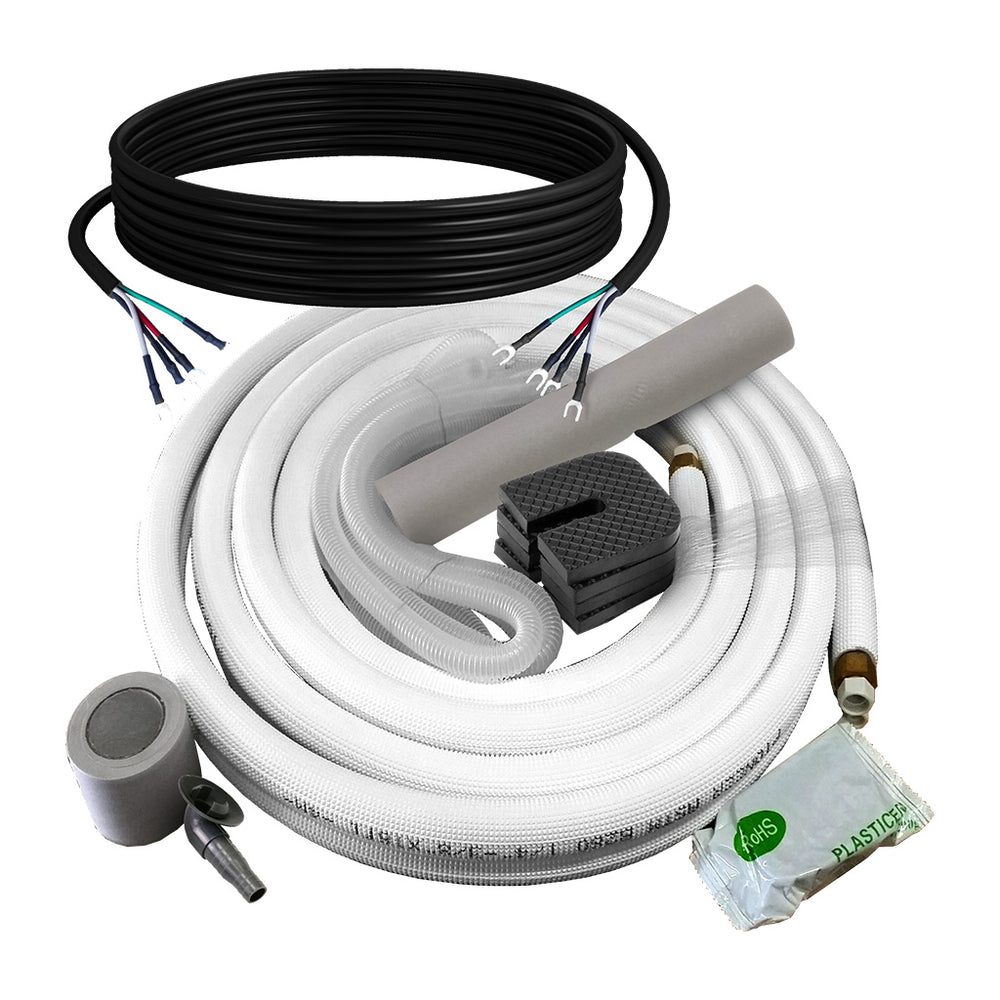

16 Ft. Copper Lines
16 Ft. Electrical Wire
10 Ft. Drain for indoor/outdoor
Wall Passage Sleeve
Putty for Wall Hole
Leak Guard Sealer
Wrapping Tape
Installation Manual
User’s Manual

Warranty Information

5 years Warranty for Parts
5 years Warranty for Compressor

Performance Data

Power Supply: 208~230V, 60Hz, 1Ph
Cooling Rated Capacity: 36,000 BTU/h
Cooling Capacity Range: 10,800~39,600 BTU/h
Cooling SEER2: 19 BTU/W.h
Cooling EER2: 9 BTU/W.h
Heating Rated Capacity: 36,000 BTU/h
Heating Capacity Range: 10,800~39,600 BTU/h
Heating HSPF2 (Region IV/V): 8.5 / 7.0 BTU/W.h
Heating C.O.P.2 (47°F/5°F): 3.01 / 1.75 W/W
Refrigerant Type: R410A
Suitable Area: 900~1,250 Sq.F

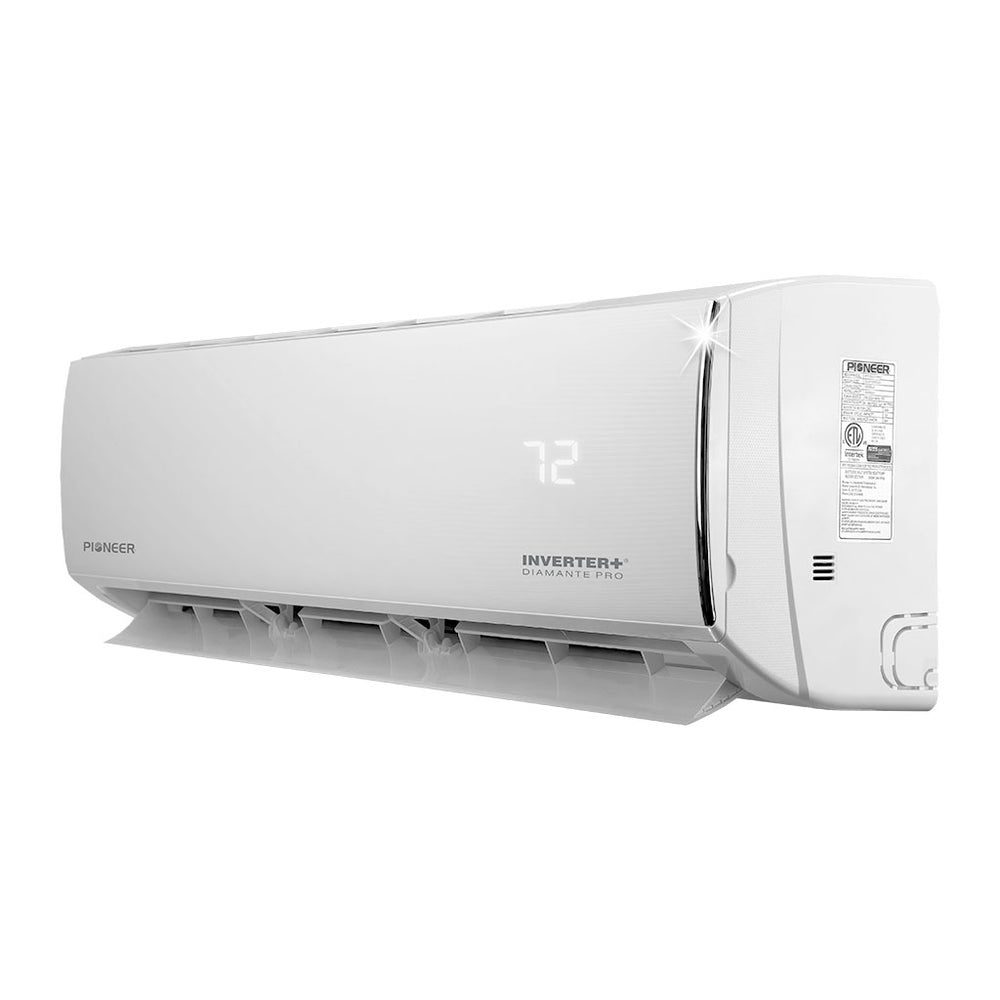

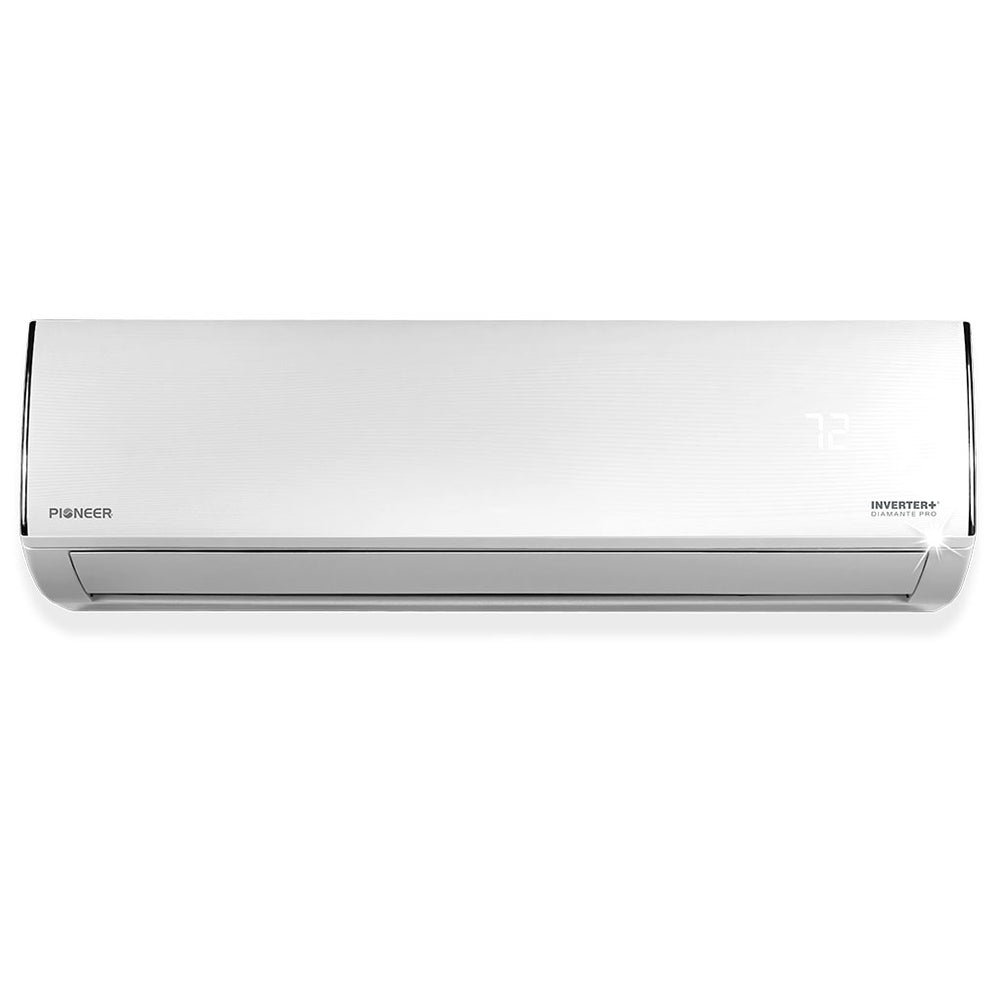

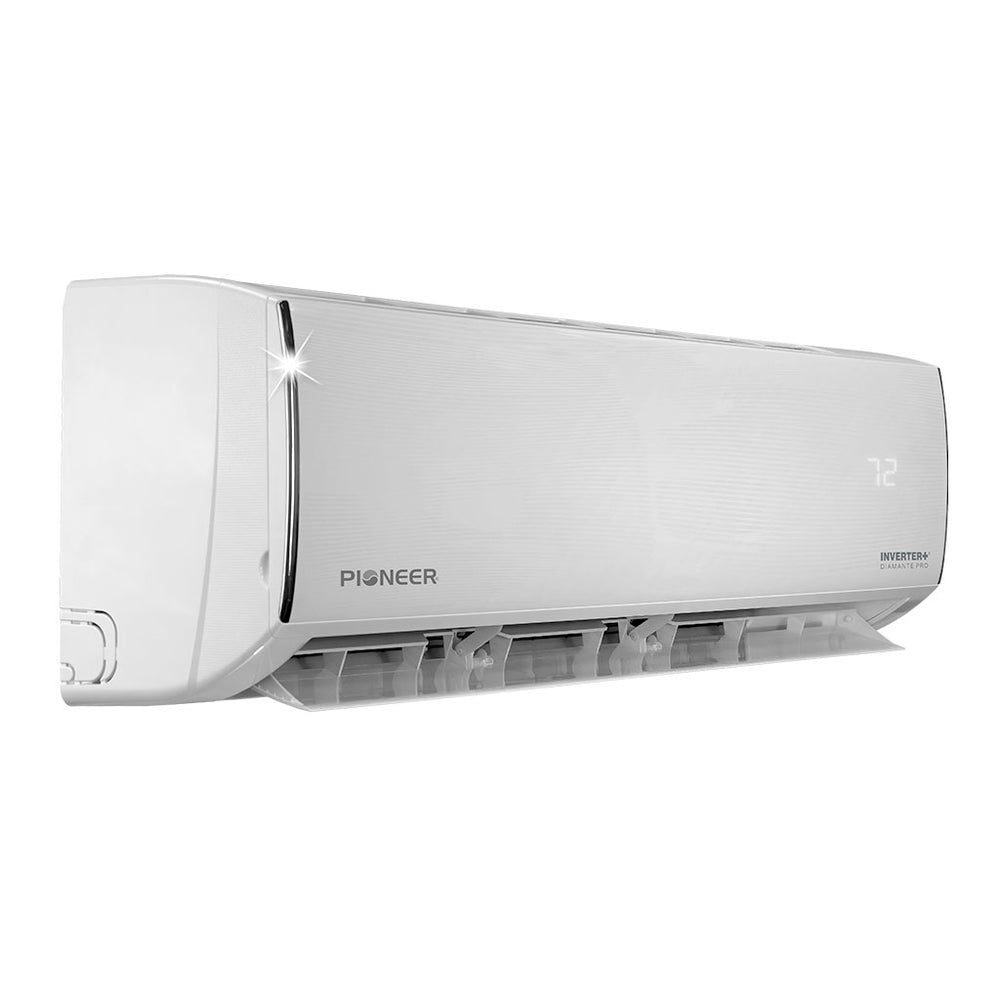

Indoor Unit Data

Part Number: WT024GLFI19HLE
Air Flow (Hi/Med/Lo): 847 / 700 / 641 CFM
Sound Level (Hi/Med/Lo): 48 / 43 / 38 dB(A)
Net Dimensions (WDH): 46-5/8 x 10-1/4 x 13-3/8 Inches
Carton Dimensions (WDH): 49-3/4 x 13-1/4 x 16-1/2 Inches
Net / Gross Weight: 37.5 / 46.3 lbs

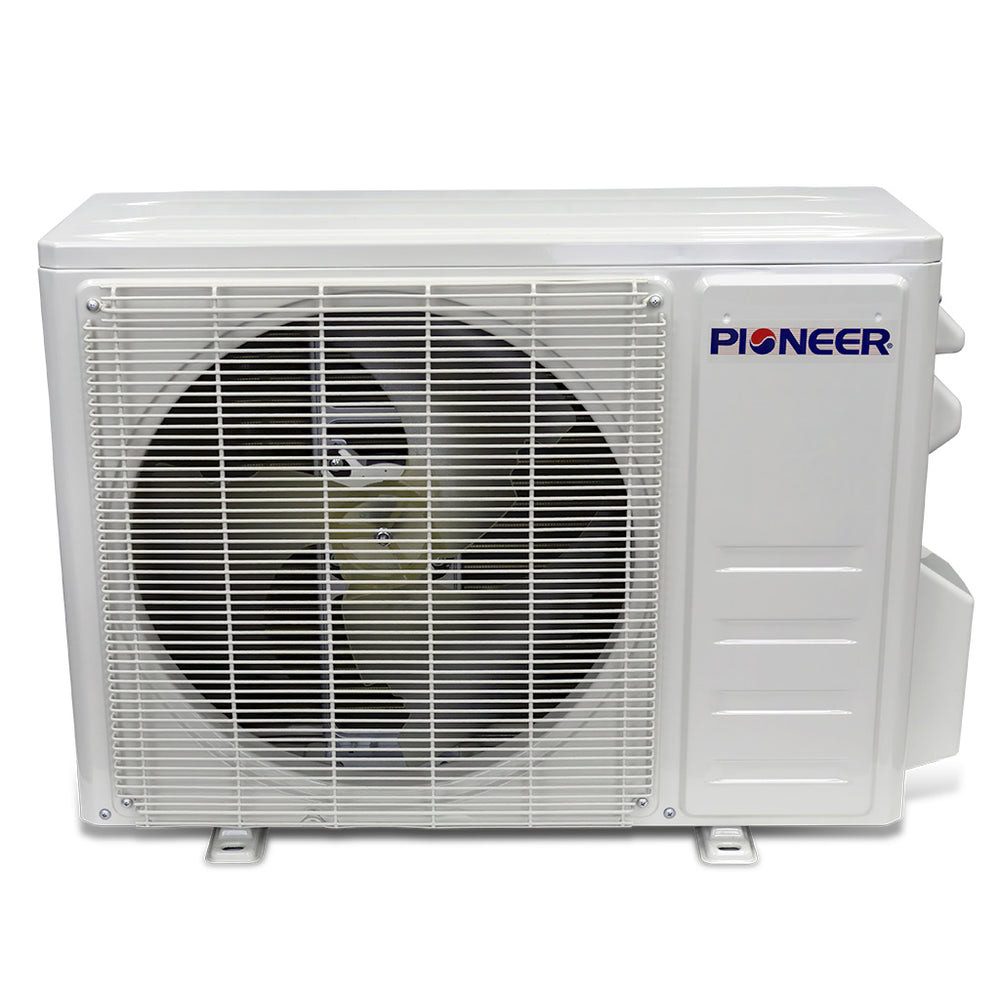

Outdoor Unit Data

Part Number: YN036GLFI19RPE
Breaker Needed: 25A (double-pole)
Sound Level: 63 dB(A)
Net Dimensions (WDH): 35-3/4 x 14-1/8 x 31-1/2 Inches
Carton Dimensions (WDH): 40-1/2 x 18-3/4 x 34 Inches
Net / Gross Weight: 114.6 / 126.8 lbs

MANUALS & DOCUMENTS

Specifications

User & Installation Manual

Service Manual

AHRI Certificate

Energy Guide
