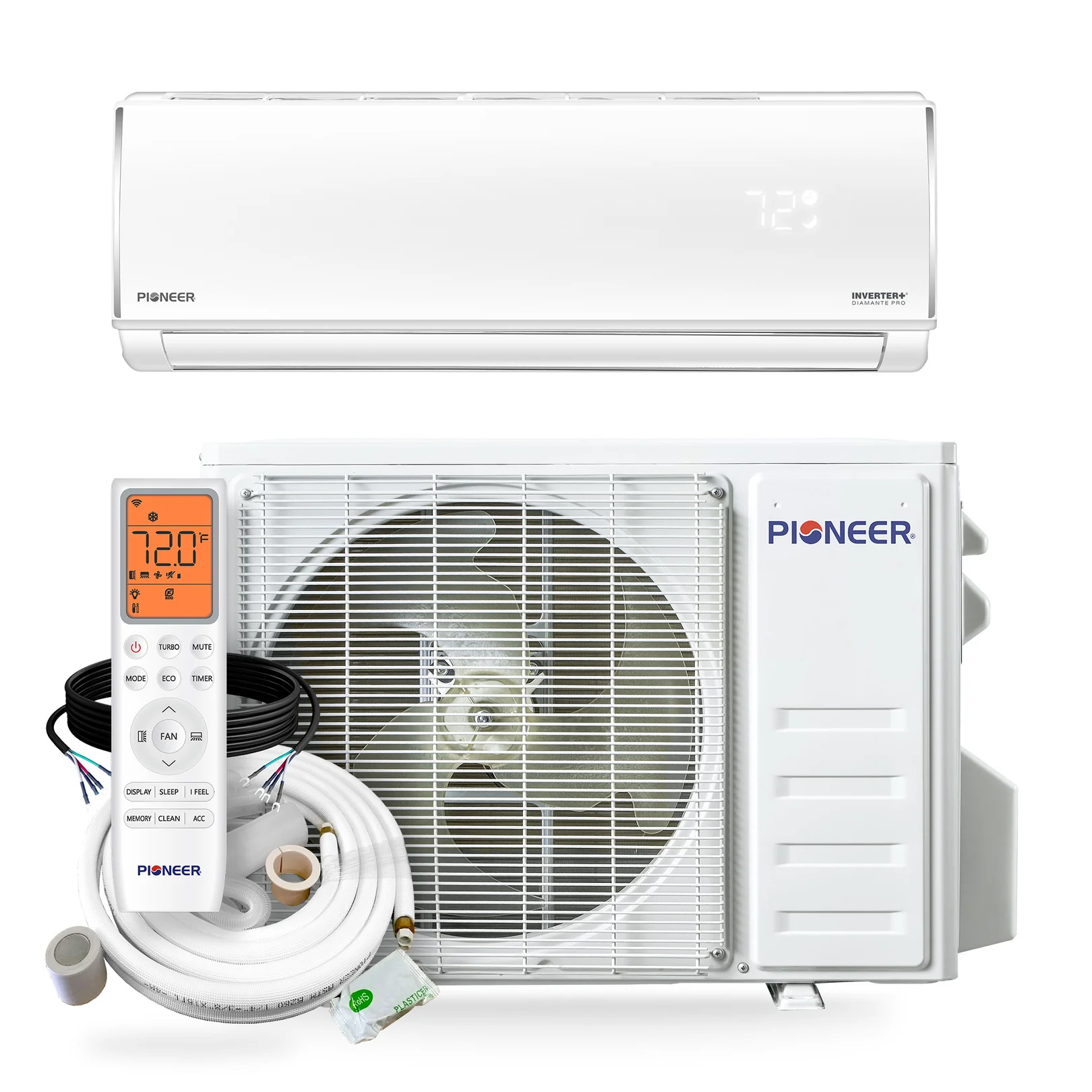

Pioneer® Quantum Hyperformance™ 18,000 BTU 23.5 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set

Summary

• Ultimate Efficiency Quantum Hyperformance™ Ductless Mini Split Heat Pump System
• Cooling capacity: 18,000 BTU/H with 23.5 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 18,000 BTU/H with 10.0 HSPF2 / 3.64 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System

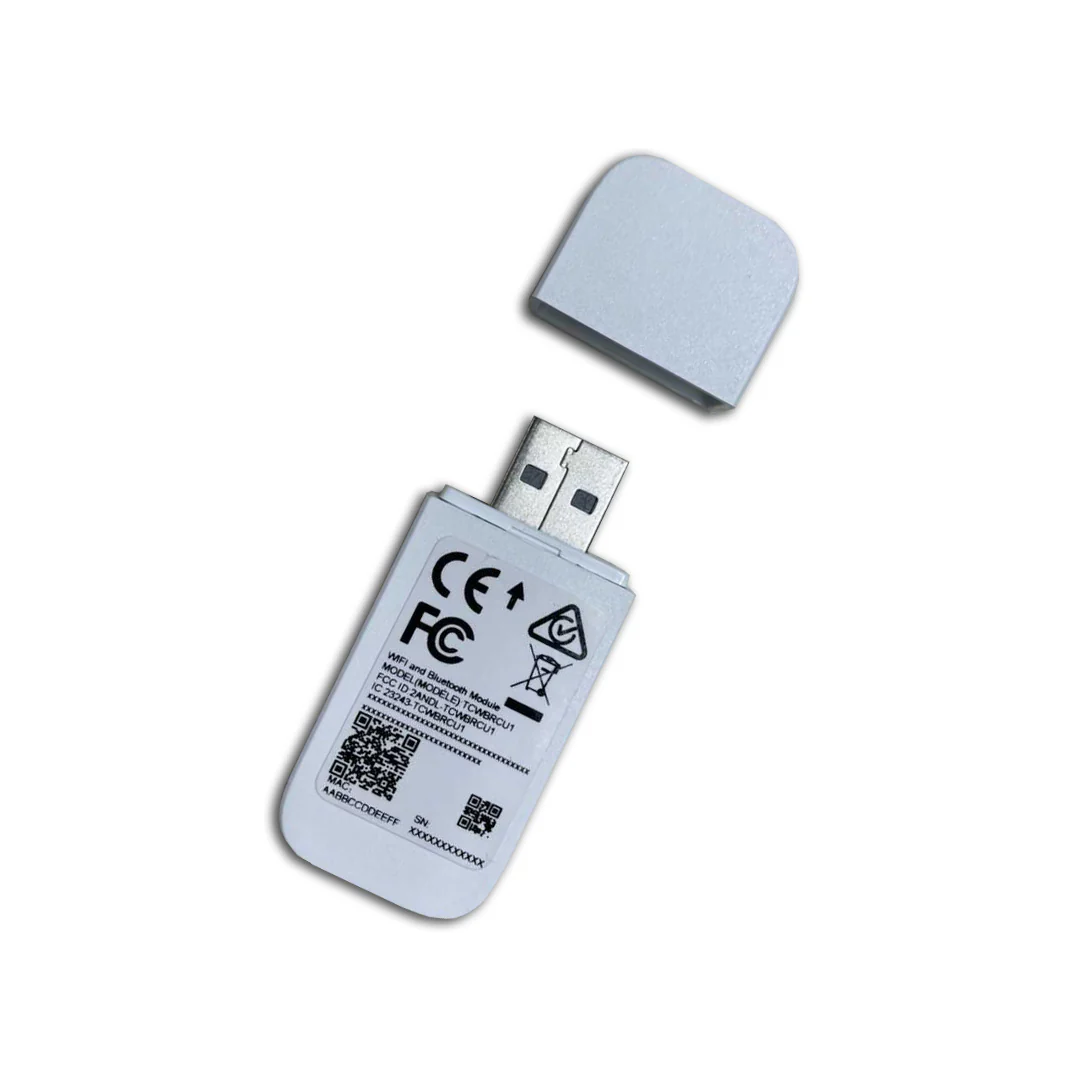

• Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Extreme Climate Operation (As low as -22°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

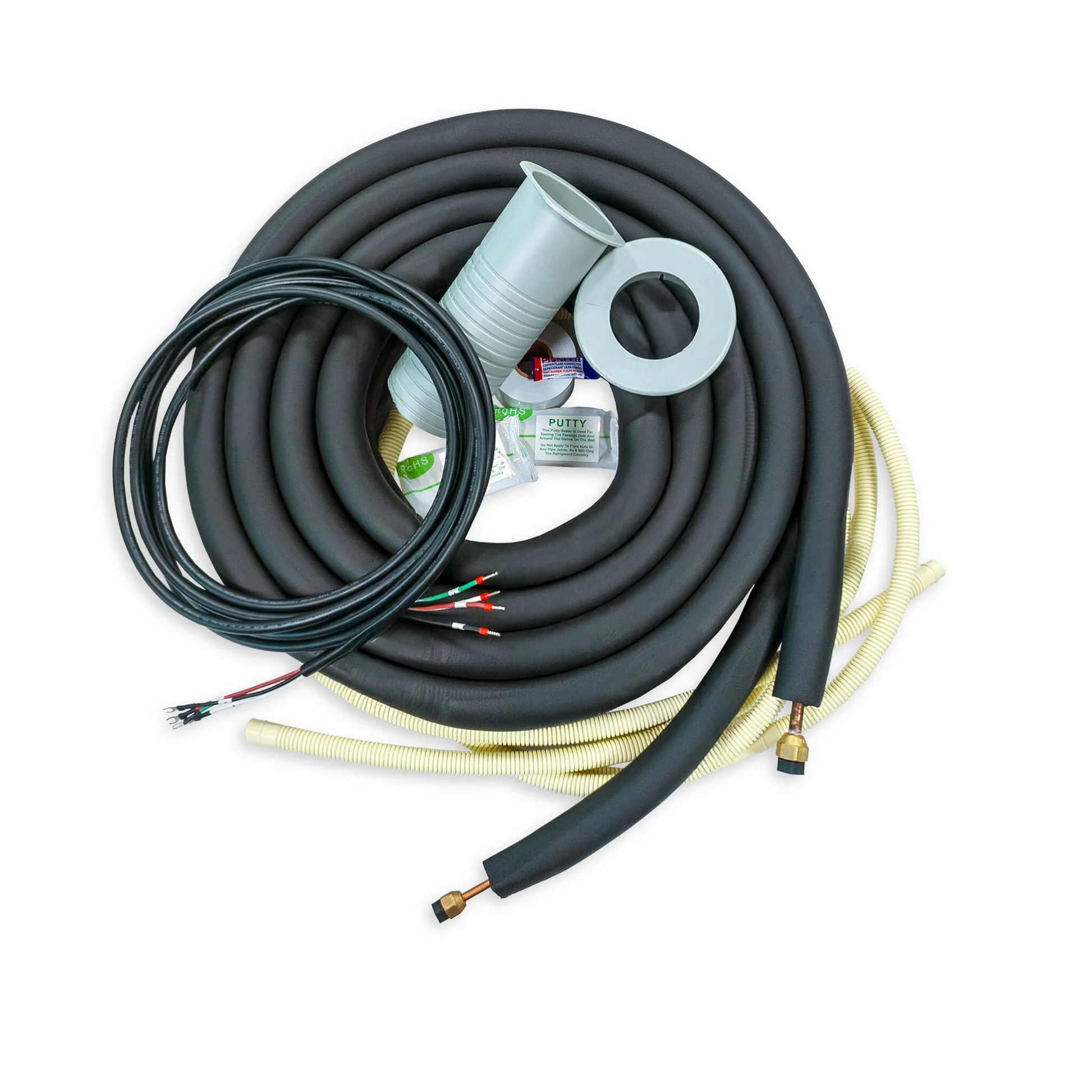

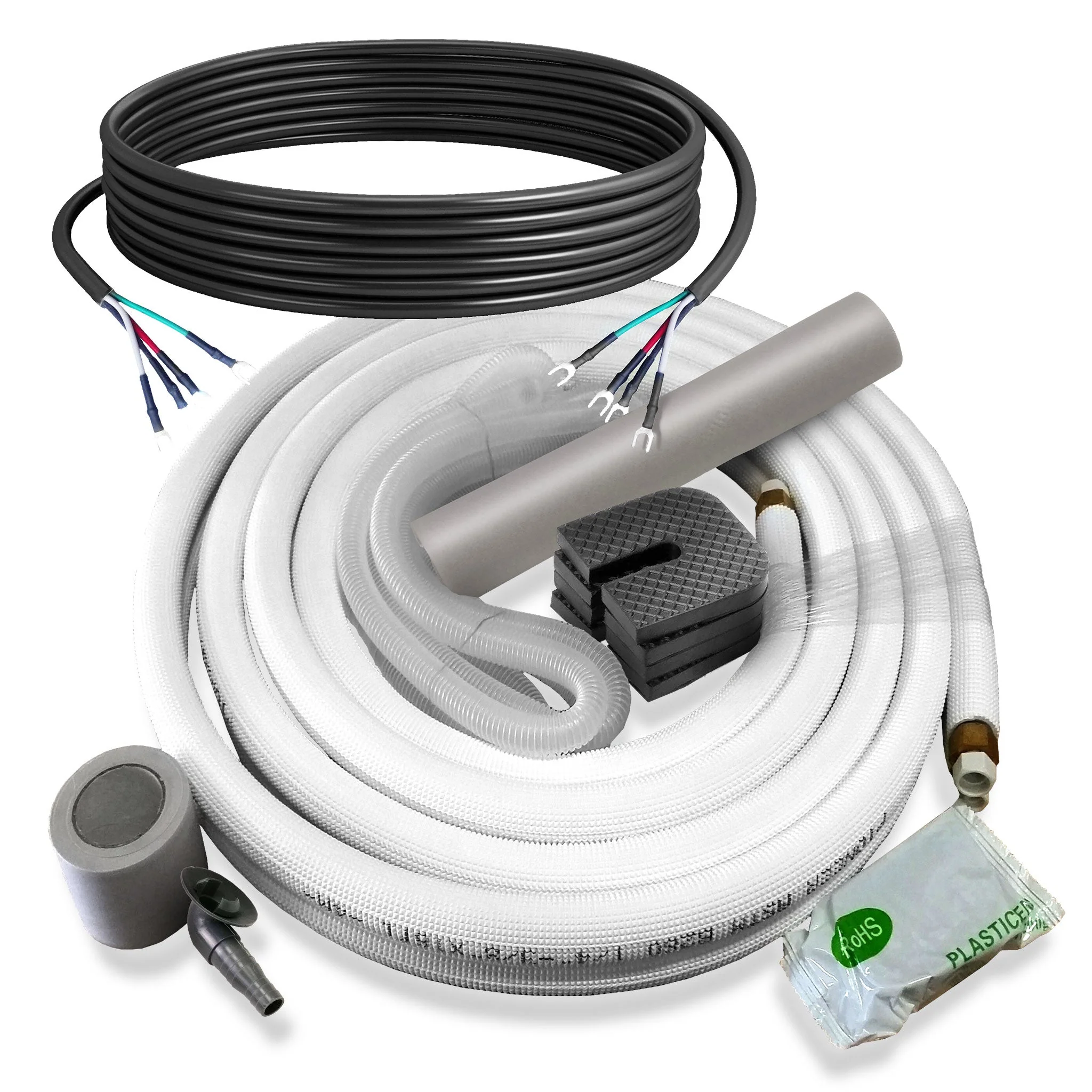

  • • System Kit
      • Power Supply: 208~230V, 60Hz, 1Ph
      • Cooling Rated Capacity: 18,000 BTU/h
      • Cooling Capacity Range: 4,100~19,400 BTU/h
      • Cooling SEER2: 23.5 BTU/W.h
      • Cooling EER2: 12.5 BTU/W.h
      • Heating Rated Capacity: 18,000 BTU/h
      • Heating Capacity Range: 4,100~21,400 BTU/h
      • Heating HSPF2 (Region IV/V): 10.0 / 8.8 BTU/W.h
      • Heating C.O.P.2 (47°F/5°F): 3.64 / 1.8 W/W
      • Refrigerant Type: R454b
      • Recommended Room Size: 500~750 sq ft
      • Minimum Room Size: 52 sq ft
      • Piping Diameter:1/2″ (Gas) / 1/4″ (Liquid)
      • AHRI Reference: 217048756
    • Indoor Unit
      • Part Number: WT018GLSI25HLH
      • Air Flow (Turbo/Hi/Med/Lo/Mute): 735 / 676 / 529 / 423 / 394 CFM
      • Sound Level (Turbo/Hi/Med/Lo/Mute): 48 / 45 / 40 / 37 / 34 dB(A)
      • Product Dimensions (WDH): 43″-1/8 x 8″-3/4 x 13″ Inches
      • Carton Dimensions (WDH): 45″-7/8 x 11″-5/8 x 16″ Inches
      • Net / Gross Weight: 30.9 / 35.3 lbs
    • Outdoor Unit
      • Part Number: YN018GLSI25RPH
      • Breaker Needed: 30A (double-pole)
      • Sound Level: 58 dB(A)
      • Net Dimensions (WDH): 36″-1/2 x 15″ x 27″-1/2 Inches
      • Carton Dimensions (WDH): 37″-3/8 x 16″-1/2 x 28″-7/8 Inches
      • Net / Gross Weight: 93.7 / 102.5 lbs

    Dimension Chart

  •
